# Plotting with TikZ, Part III: Plotting a function defined by a formula, and plotting functions that go through certain points

2019-05-13 / 2019-W20-1T15:41:00-05:00 / 0x5cd9d65c

Categories: TikZ ist kein Zeichenprogramm, indeed, LaTeX, math

In the last post, I described how I use TikZ to create a graph that might otherwise be created freehand:

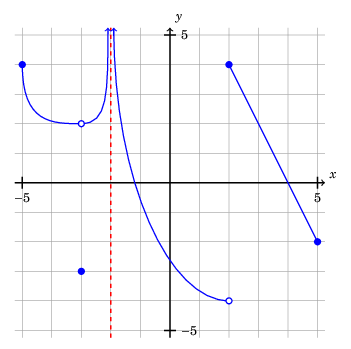

In this post, I will describe one method for using TikZ to to plot a function defined by a formula, such as $y = \left(2x^2 - x - 1\right)e^{-x}.$ Then I will show two ways to make a function go through a certain point.

# Plotting from a formula

## Simple example

There are a number of ways to achieve this, and PGF actually includes the functionality to perform calculations in TeX. (For example, I have used the PGF pseudorandom number generator in graphics. Someone even made TikZ code to generate a random city skyline.) However, for efficiency sake, I prefer to have the calculations done outside TeX, in a more efficient computer language.

The trick is to use the gnuplot table import format. You simply have to generate a text file with a list of coordinates in the following form:

-1.250000 11.779907
-1.240000 11.456050
-1.230000 11.138839


This file contains the coordinates $$(-1.25, 11.779907)$$, $$(-1.24, 11.456050)$$, $$(-1.23, 11.138839)$$.

There are a number of ways to generate such a file. Since I like Python, I used the following (simple) Python script:

Python
#! /usr/bin/env python3

import numpy as np

f = lambda x: (2*x**2 - x - 1)*np.exp(-x)

xvals = np.arange(-1.25, 10.25, 0.01)

with open("plot1.table", "wt") as outfile:
for x in xvals:
outfile.write("{:f} {:f}\n".format(x, f(x)))


Now, this curve can be imported into your TikZ illustration using \draw [. . .] plot; in this case:

LaTeX

\draw[thick, blue, <->] plot[smooth] file {plot1.table};



Here is a complete example (with coordinate axes and everything):

LaTeX
\documentclass[border=0.25cm]{standalone}

\usepackage{tikz}
\usepackage{fouriernc}

\begin{document}

\begin{tikzpicture}[yscale=0.5]

\draw[gray] (-1.25, -1.25) grid (10.25, 12.25);

% x-axis
\draw[thick, black, ->] (-1.25, 0) -- (10.25, 0)
node[anchor=south west] {$x$};

% x-axis tick marks
\foreach \x in {-1, 10}
\draw[thick] (\x, 0.2) -- (\x, -0.2)
node[anchor=north] {$$\x$$};

% y-axis
\draw[thick, black, ->] (0, -1.25) -- (0, 12.25)
node[anchor=south west] {$y$};

% y-axis tick marks
\foreach \y in {-1, 12}
\draw[thick] (-0.1, \y) -- (0.1, \y)
node[anchor=west] {$$\y$$};

% graph of function
\draw[thick, blue, <->] plot[smooth] file {plot1.table};

\end{tikzpicture}
\end{document}

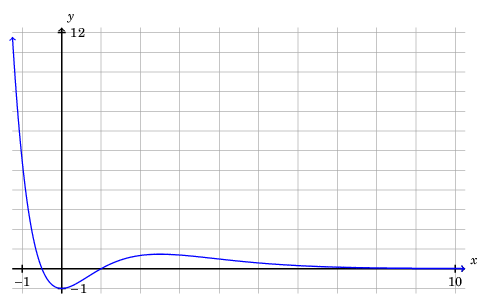

And here is the output:

In my Python script above, I carefully chose the set of inputs $$x$$ (np.arange(-1.25, 10.25, 0.01), i.e., every real number of the form $$-1.25 + 0.01k, \; k \in \mathbb{Z}$$ in the interval $$[-1.25, 10.25)$$) to keep $$f(x) < 12$$. This can also be handled computationally.

## Example involving asymptotes

For example, suppose I want to plot $$y = r(x)$$, where $r(x) = \frac{6x^3 + 21x^2 - 21x - 36}{3x^3 + 3x^2 - 12x - 12},$ with $$-15.5 \leq x \leq 15.5$$. Let's additionally suppose I want to only see $$y$$-values with $$-15.5 \leq y \leq 15.5$$. (In other words, the "viewing rectangle" will be $$[-15.5, 15.5] \times [-15.5, 15.5]$$.)

Factoring the numerator and denominator, we have:

$r(x) = \frac{6x^3 + 21x^2 - 21x - 36}{3x^3 + 3x^2 - 12x - 12}$ $\phantom{r(x)}= \frac{\left(x + 1\right) \left(2 x - 3\right) \left(3 x + 12\right)}{\left(x + 1\right) \left(x + 2\right) \left(3 x - 6\right)}$ $\phantom{r(x)}= \frac{\left(2 x - 3\right) \left(3 x + 12\right)}{\left(x + 2\right) \left(3 x - 6\right)}, \; x \not = -1.$

As you can see, we will have vertical asymptotes at $$x = -2$$ and $$x = 2$$, and a hole at $$x = -1$$. There will also be a horizontal asymptote at $$y = 2$$.

To handle the asymptotes, we plot the function $\hat r(x) = \frac{\left(2 x - 3\right) \left(3 x + 12\right)}{\left(x + 2\right) \left(3 x - 6\right)}$ along three intervals:

• $$[-15.5, -2)$$,
• $$(-2, 2)$$, and
• $$(2, 15.5]$$

(Actually, for each of the above intervals $$I$$, we plot something approximating $$\left\{(x, \hat r(x)): x \in I \text{ and } |\hat r(x)|\leq 16\right\}$$.)

Here is the Python script:

Python
#! /usr/bin/env python3

import numpy as np

r = lambda x: (2*x - 3)*(3*x + 12)/((x + 2)*(3*x - 6))

xvals = [
np.arange(-15.5, -2, 0.01),
np.arange(-2.01, 2, 0.01),
np.arange(2.01, 15.6, 0.01)
]

for idx, interval in enumerate(xvals):
with open("plot2_{}.table".format(idx), "wt") as outfile:
for x in interval:
if abs(r(x)) <= 16:
outfile.write("{:f} {:f}\n".format(x, r(x)))


Here is the corresponding LaTeX code:

LaTeX
\documentclass[border=0.25cm]{standalone}

\usepackage{tikz}
\usepackage{fouriernc}

\begin{document}

\begin{tikzpicture}[scale=0.5] % Scale keeps the graphic small

\draw[gray] (-15.5, -15.5) grid (15.5, 15.5);

% x-axis
\draw[thick, black, ->] (-15.5, 0) -- (15.5, 0)
node[anchor=south west] {$x$};

% x-axis tick marks
\foreach \x in {-15, -10, -5, 5, 10, 15}
\draw[thick] (\x, 0.5) -- (\x, -0.5)
node[anchor=north] {$$\x$$};

% y-axis
\draw[thick, black, ->] (0, -15.5) -- (0, 15.5)
node[anchor=south west] {$y$};

% y-axis tick marks
\foreach \y in {-15, -10, -5, 5, 10, 15}
\draw[thick] (-0.5, \y) -- (0.5, \y)
node[anchor=west] {$$\y$$};

% graph of function
\draw[thick, blue, <->] plot[smooth] file {plot2_0.table};
\draw[thick, blue, <->] plot[smooth] file {plot2_1.table};
\draw[thick, blue, <->] plot[smooth] file {plot2_2.table};

% hole at (-1, 5)
\draw[thick, blue, fill=white] (-1, 5) circle (2.5mm);

% vertical asymptotes
\draw[thick, dashed, red] (-2, -15.5) -- (-2, 15.5);
\draw[thick, dashed, red] (2, -15.5) -- (2, 15.5);

% horizontal asymptote
\draw[thick, dashed, red] (-15.5, 2) -- (15.5, 2);

\end{tikzpicture}
\end{document}

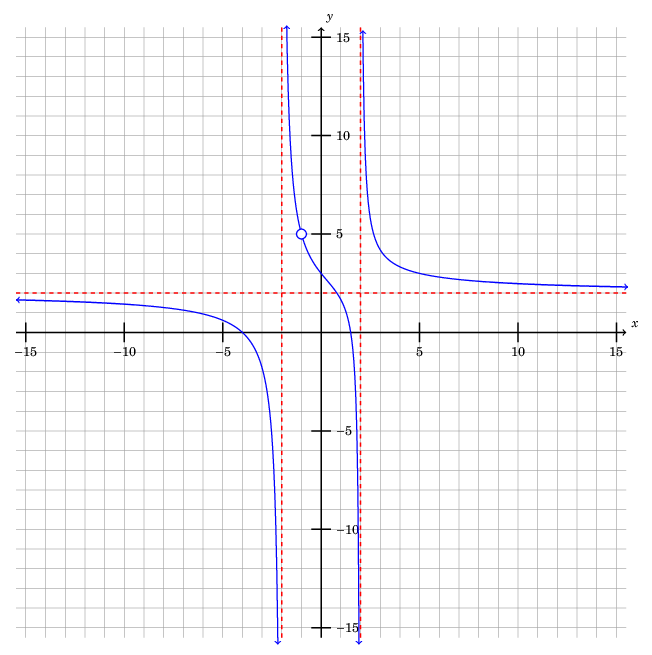

And here is the result:

# Plotting functions that go through certain points: two ways

Suppose I want to plot a function that go through certain points, say:

• $$(-4, 2)$$,
• $$(-1, 6)$$,
• $$(2, 3)$$, and
• $$(4, 5)$$.

I want the function to be differentiable.

## Method one: Bézier curves

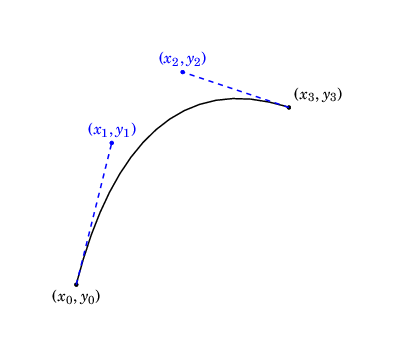

Recall from the last post that a (cubic) Bézier curve is specified by four points:

• A start point ($$(x_0, y_0)$$ in the diagram below)
• Two control points ($$(x_1, y_1)$$ and $$(x_2, y_2)$$ in the diagram below)
• An end point ($$(x_3, y_3)$$ in the diagram below)

The syntax is: \draw ($$x_0, y_0$$) .. controls ($$x_1, y_1$$) and ($$x_2, y_2$$) .. ($$x_3, y_3$$);

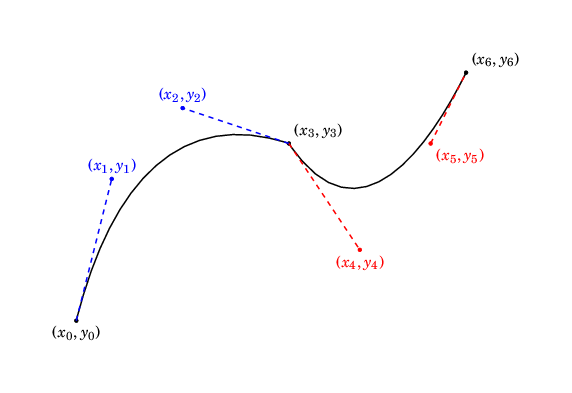

Now, we can combine multiple Bézier curves into a single \draw. For example, \draw ($$x_0, y_0$$) .. controls ($$x_1, y_1$$) and ($$x_2, y_2$$) .. ($$x_3, y_3$$) .. controls ($$x_4, y_4$$) and ($$x_5, y_5$$) .. ($$x_6, y_6$$); will produce:

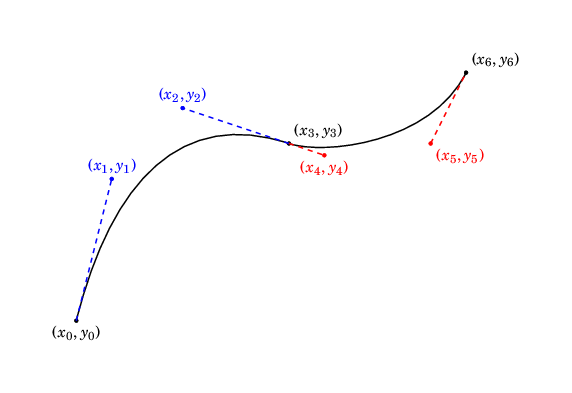

In general, this curve will not necessarily be differentiable. We can get differentiability by ensuring that $$(x_2, y_2)$$, $$(x_3, y_3)$$ and $$(x_4, y_4)$$ are colinear (i.e., the end of the first Bézier curve has the same derivative as the beginning of the second) with $$x_2 \not = x_3$$:

Keeping these principles in mind, we can plot a function going through the desired points with:

LaTeX
\documentclass[border=0.25cm]{standalone}

\usepackage{tikz}
\usepackage{fouriernc}

\begin{document}

\begin{tikzpicture}[scale=0.5] % Scale keeps the graphic small

\draw[gray] (-5.25, 0) grid (5.25, 8.25);

% x-axis
\draw[thick, black, ->] (-5.25, 0) -- (5.25, 0)
node[anchor=south west] {$x$};

% x-axis tick marks
\foreach \x in {-5, 5}
\draw[thick] (\x, 0.25) -- (\x, -0.25)
node[anchor=north] {$$\x$$};

% y-axis
\draw[thick, black, ->] (0, 0) -- (0, 8.25)
node[anchor=south west] {$y$};

% y-axis tick marks
\foreach \y in {4, 8}
\draw[thick] (-0.25, \y) -- (0.25, \y)
node[anchor=west] {$$\y$$};

% graph of function
\draw[thick, blue, <->] (-5.25, -0.5)
.. controls (-4, 0) and (-5, 0) .. (-4, 2)
.. controls (-3.5, 3) and (-3, 6) .. (-1, 6)
.. controls (1, 6) and (1.75, 4) .. (2, 3)
.. controls (2.25, 2) and (3, 2) .. (4, 5)
.. controls (4.5, 6.5) and (4.5, 7) .. (5.25, 8);

\end{tikzpicture}
\end{document}

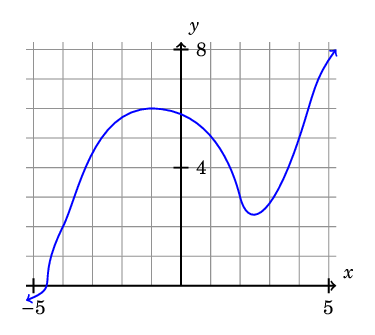

Here is the output:

## Method two: Polynomial interpolation

SciPy's interpolation functionality can find a smooth function that passes through an arbitrary list of points. Here is an example of a Python script to produce such a function and create a table in the necessary format:

Python
#! /usr/bin/env python3

import numpy as np
import scipy.interpolate

coords = [(-10, 8), (-4, 2), (-1, 6), (2, 3), (4, 5), (10, 1)]

# Since our goal is to plot from x = -5.25 to x = 5.25,

# we need to specify some points beyond that interval on both sides.

xcoords, ycoords = zip(*coords)

# This produces a seperate list of x-coordinates and y-coordinates

f = scipy.interpolate.interp1d(xcoords, ycoords, kind="cubic")

xvals = np.arange(-5.25, 5.25, 0.01)
yvals = f(xvals)

outcoords = zip(xvals, yvals)

# This produces a list of coordinate pairs

with open("plot3.table", "wt") as outfile:
for pair in outcoords:
outfile.write("{:f} {:f}\n".format(pair[0], pair[1]))


Note that if we had set coords = [(-4, 2), (-1, 6), (2, 3), (4, 5)], then the resulting function would not have had a defined value outside of the interval $$[-4, 4]$$.

To plot, we use the following tikzpicture:

LaTeX
\documentclass[border=0.25cm]{standalone}

\usepackage{tikz}
\usepackage{fouriernc}

\begin{document}

\begin{tikzpicture}[scale=0.5] % Scale keeps the graphic small

\draw[gray] (-5.25, 0) grid (5.25, 8.25);

% x-axis
\draw[thick, black, ->] (-5.25, 0) -- (5.25, 0)
node[anchor=south west] {$x$};

% x-axis tick marks
\foreach \x in {-5, 5}
\draw[thick] (\x, 0.25) -- (\x, -0.25)
node[anchor=north] {$$\x$$};

% y-axis
\draw[thick, black, ->] (0, 0) -- (0, 8.25)
node[anchor=south west] {$y$};

% y-axis tick marks
\foreach \y in {4, 8}
\draw[thick] (-0.25, \y) -- (0.25, \y)
node[anchor=west] {$$\y$$};

% graph of function
\draw[thick, blue, <->] plot[smooth] file {plot3.table};

\end{tikzpicture}
\end{document}

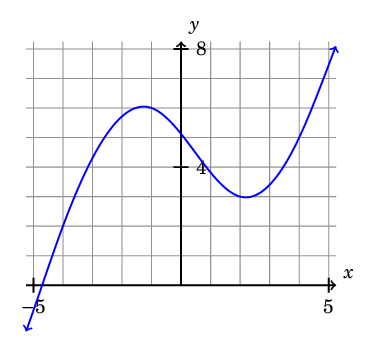

Here is the result:

As we have seen, creating plots with TikZ allows you a deep amount of control over the final result, and can be especially powerful when combined with a programming language such as Python.
